Omni-λ Monochromators and Spectrographs

Omni-λ Series of imaging spectrographs and monochromators from Zolix Instruments are profession standard for researchers who

demand the highest quality data. Zolix spectrographs and monochromators feature a very flexible design that can be configured for

a wide range of applications & spectral range from UV to NIR.

Inquiry

Download

Monochromator

Details&Spec

Details

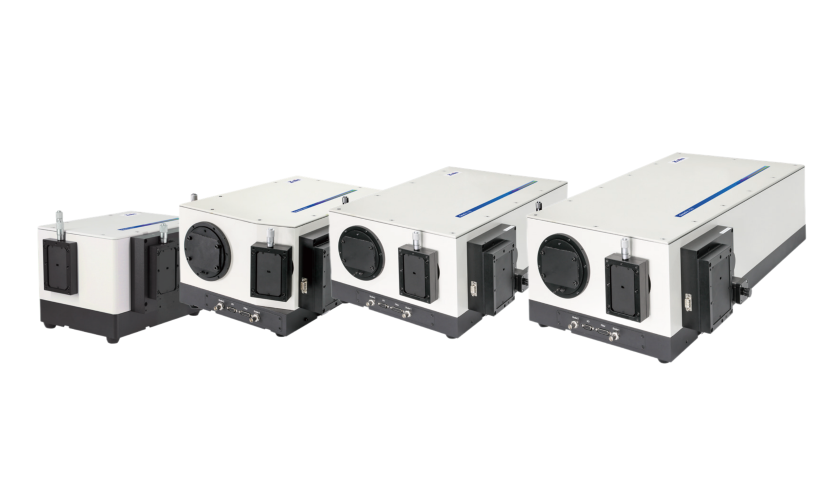

■ 200mm, 320 mm,500 mm,750 mm focal length

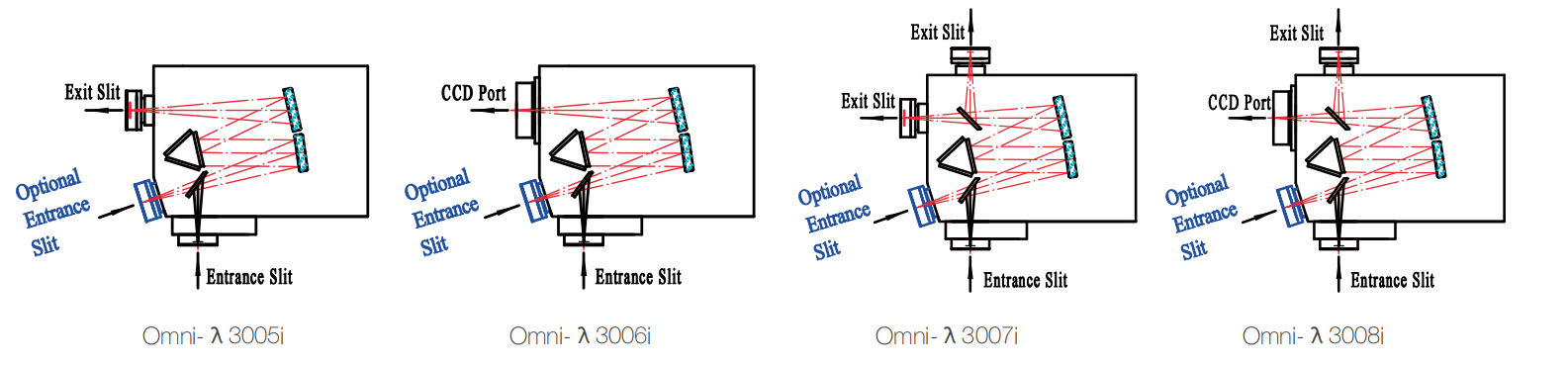

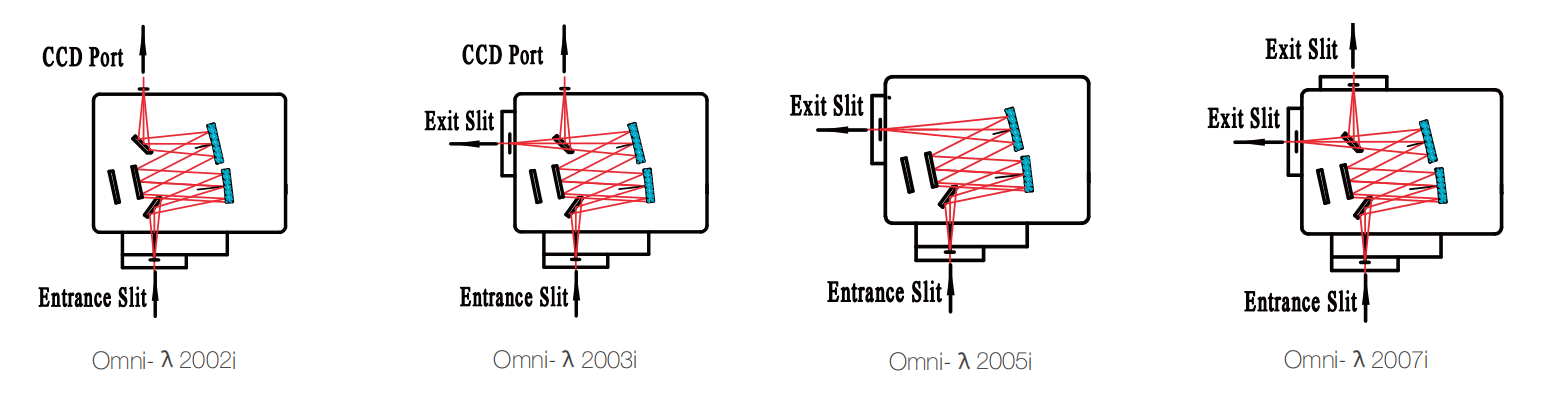

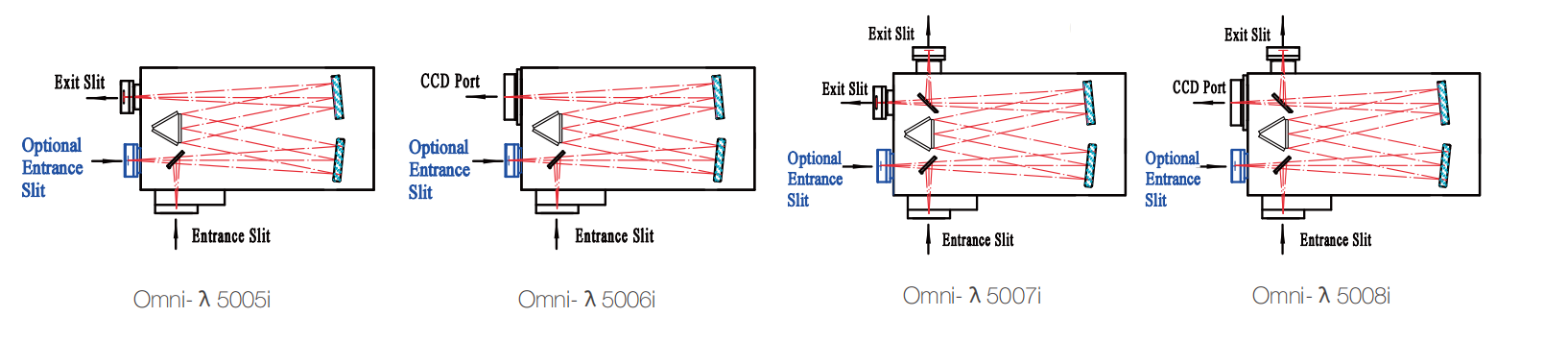

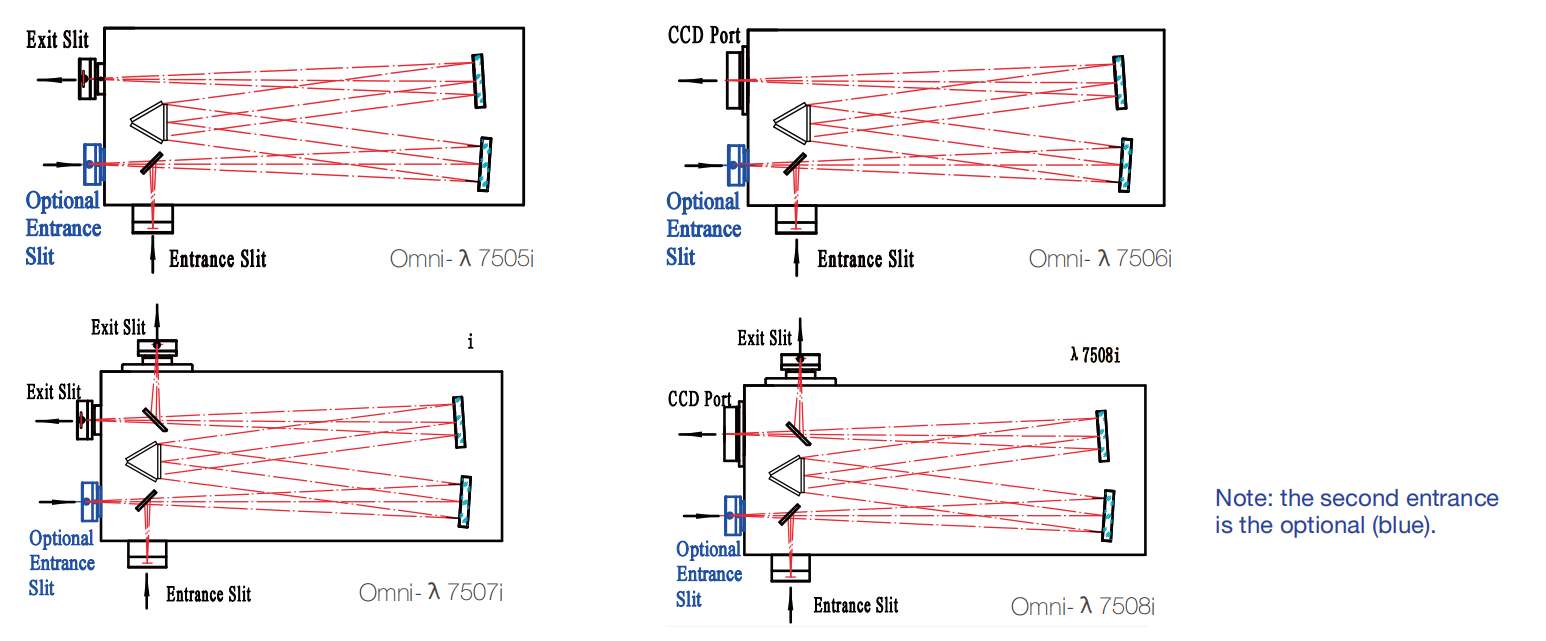

■ Our rugged Czerny-Turner spectrographs come pre-aligned and pre-calibrated for ease of operation.

■ Interchangeable triple grating turret Different wavelength ranges and resolutions, Provide a simple, accurate and convenient way for the user to change gratings within the spectrograph unit

■ These instruments can be integrated with single point detectors, InGaAs cameras and CCDs to offer a versatile, most sensitive modular solution for different applications ;

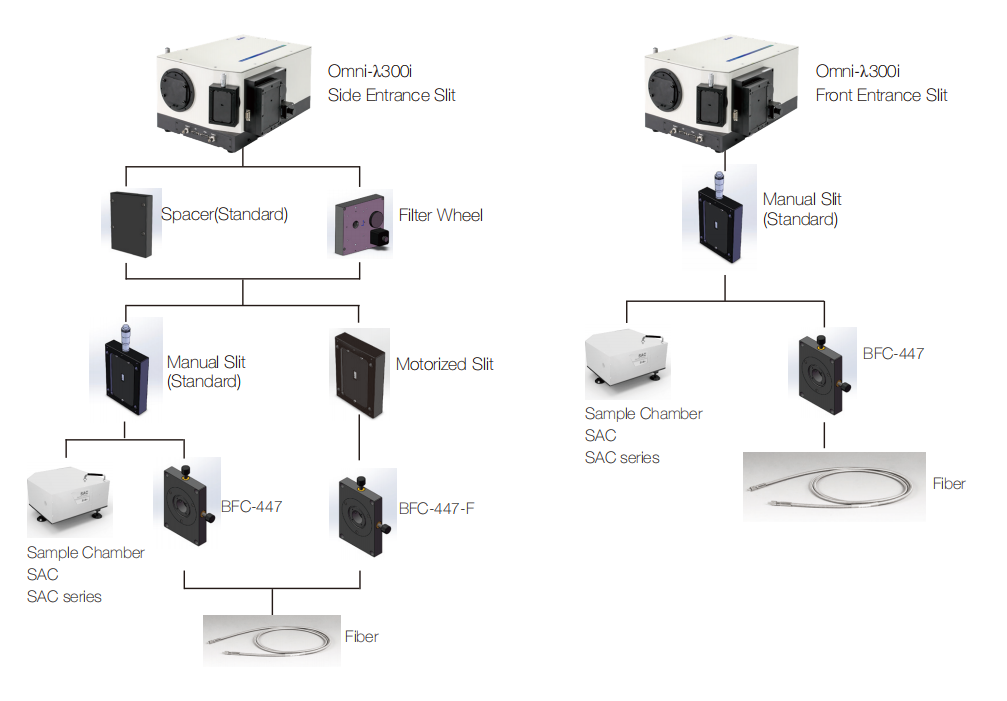

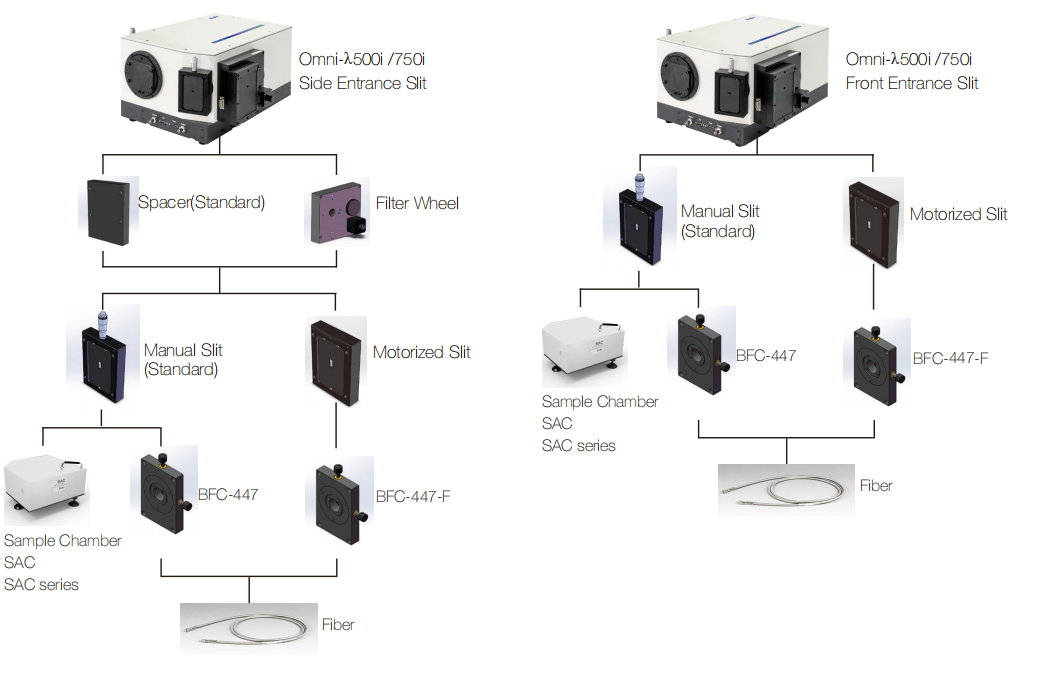

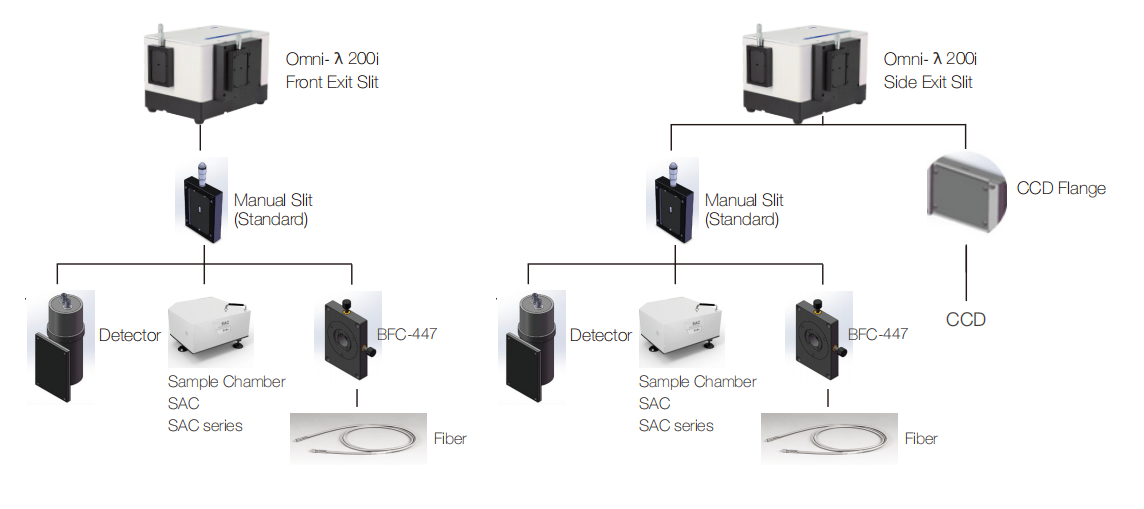

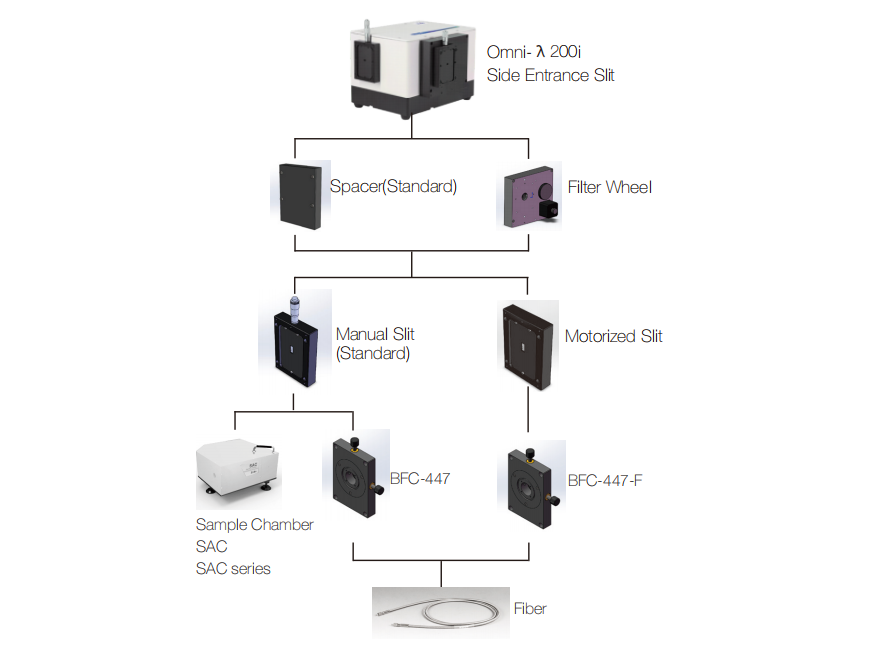

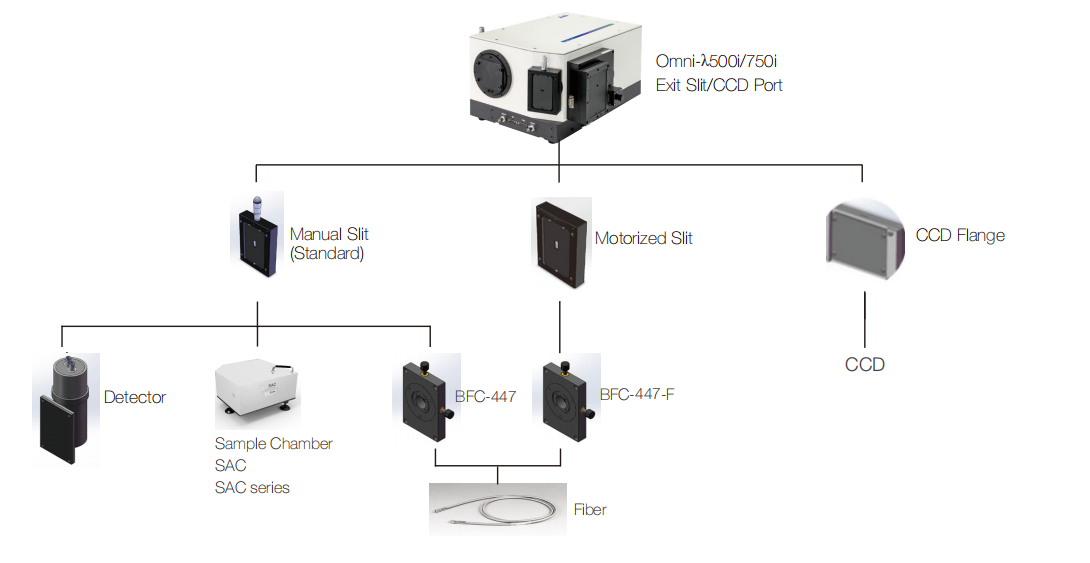

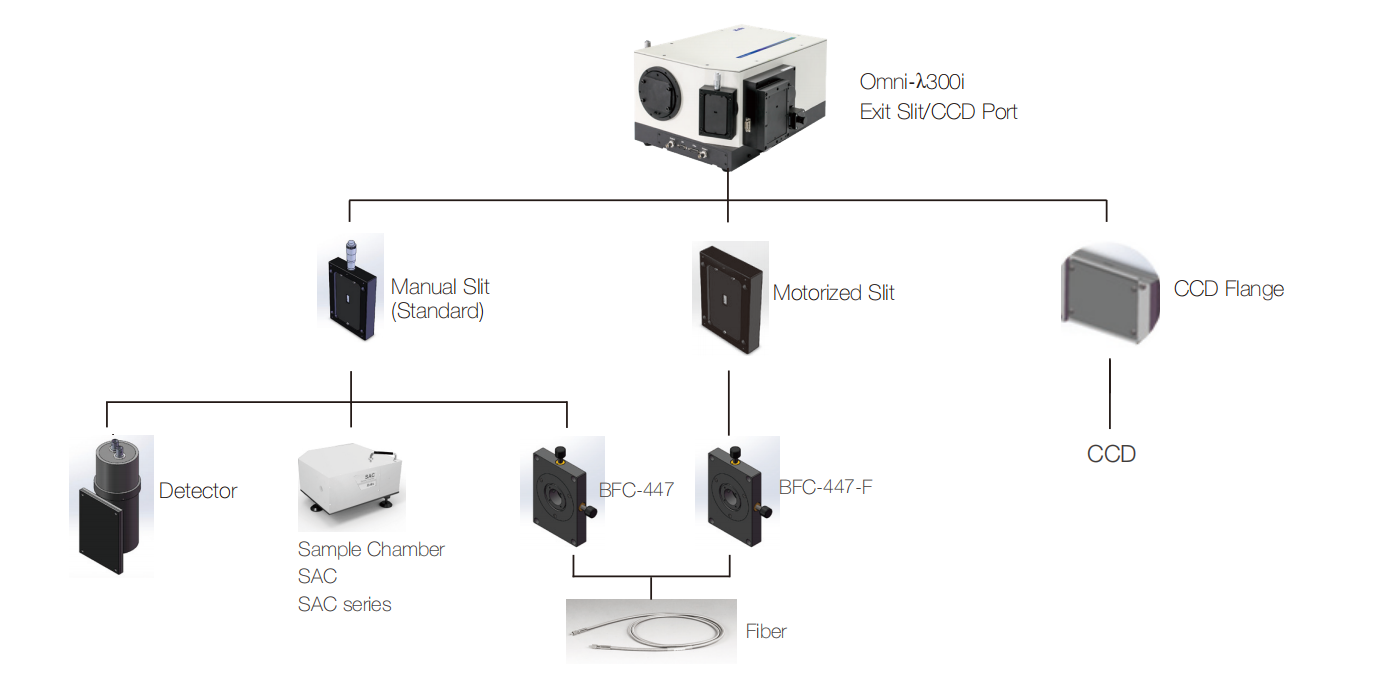

■ Accessories including filter wheels, fiber adapters, shutters, motorized slits, sample chambers etc.

■ Software can complete data acquisition for detectors including single point detectors and CCD.

■ Labview driver for programming to operate Omni-λ Series spectrographs and monochromators.

iOmni-λ Specifications(@1200g/mm* )

	Omni-λ200i	Omni-λ300i	Omni-λ500i	Omni-λ750i
Focal Length (mm)	200	320	500	750
Aperture Ratios	f/3.5	f/4.2	f/6.5	f/9.7
Resolution(nm)-PMT*	0.15	0.08	0.05	0.03
Resolution(nm)-CCD(26μm) *	0.27	0.173	0.11	0.077
Dispersion (nm/mm) *	3.58	2.29	1.49	1.02
Wavelength Accuracy(nm)	±0.2	±0.2	±0.2	±0.2
Wavelength Repeatability (nm)	±0.1	±0.025	±0.025	±0.025
Step (nm)	0.01	0.005	0.005	0.005
Stray Light	5×10-5	1×10-5	1×10-5	1×10-5
Focal Plane Size (mm)	30(w)×14(h)	30(w)×14(h)	30(w)×14(h)	30(w)×14(h)
Optical Axis Height(mm)	146	146	146	146
Slit	Width: 0.01-3mm(Motorised or manual slit), Height: 2、4，14 mm, height selectabl
Grating Size(mm)	50×50	68×68	68×68	68×68
Grating Mount	Dual grating turret	Interchangeable triple grating turret	Interchangeable triple grating turret	Interchangeable triple grating turret
Computer Interface	USB2.0	USB2.0 and RS232	USB2.0 and RS232	USB2.0 and RS232

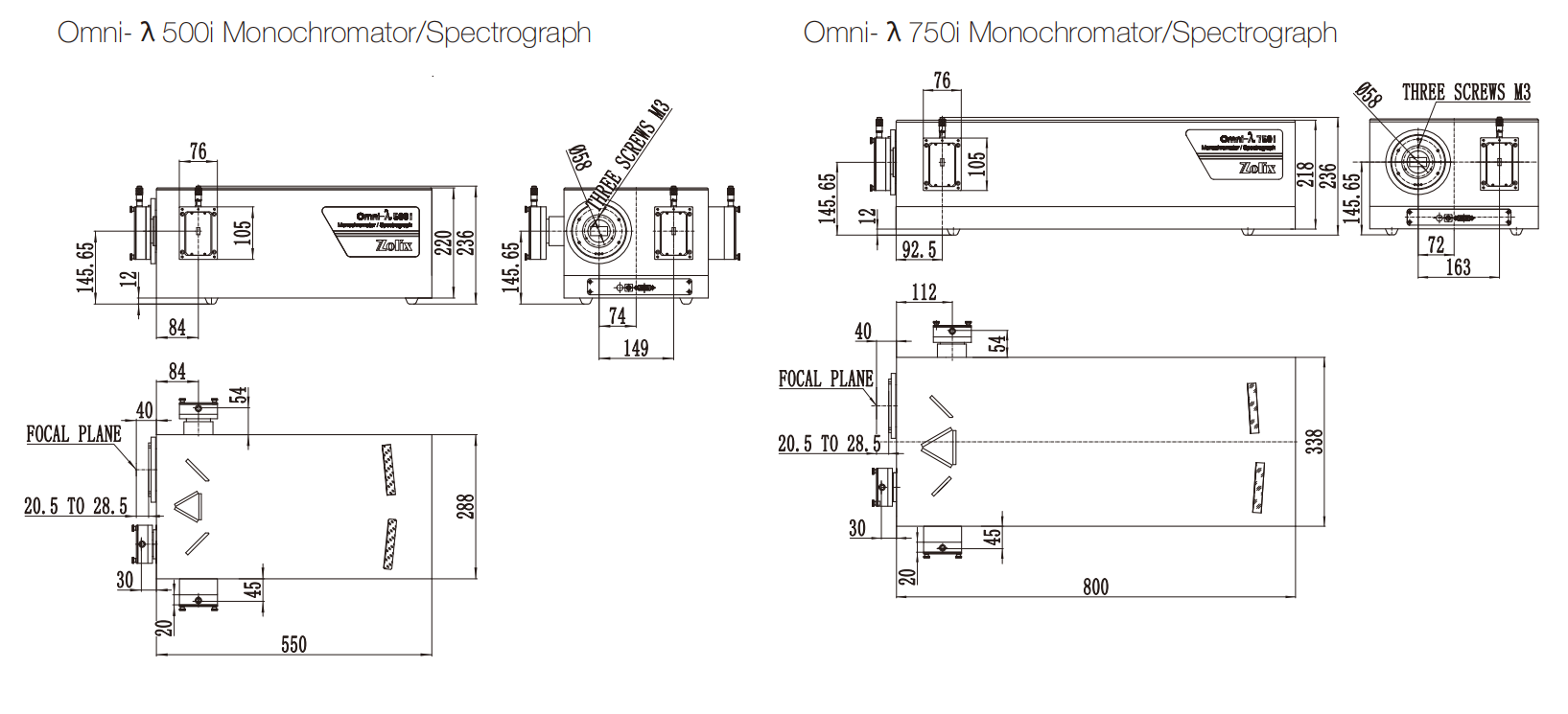

Size (mm)	300×216×213	420295232	550288220	800338218
Weight (Kg)	14	16	22	32.5
